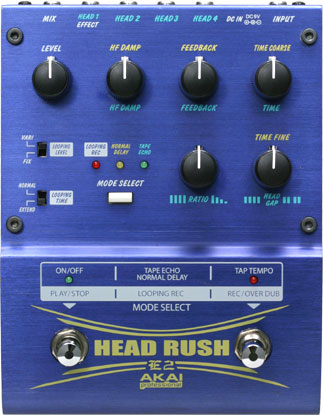

Picking up where the Headrush E1 left off, the E2 Headrush brings together 16-bit digital delay with times from 0.5ms to an 35 seconds, tape echo simulations with 4 separate heads, and a looping recorder in one pedal.
In addition to offering digital and analog-type delay sounds, user-selectable delay options allow for control of signal output. There are several realtime interval and level adjustment selections as well as feedback level for repeats.
Headrush can also simulate a 4-head analog tape echo machine and it is possible to set the spacing between the virtual heads to create complex multiple delays and repeats. The outputs of each of the virtual heads appear on individual outputs for use with an external mixing console.
The looping mode allows you to record and overdub layers of sound in real-time.
Depending upon which mode is selected, the left switch controls the on/off and play/stop functions while the right switch sets the tap delay time or recording and overdub options. The LED display indicates which effect is in use and blinks in time showing the delay time selected.
- 16-bit digital delay
- 0.5ms to 35 seconds delay times
- Tape echo simulation
- Looping recorder
- Simulated analog delay sound
- Adjustable repeat times
- Mix wet and dry signals to output
- Realtime delay control
NORMAL DELAY, TAPE ECHO and LOOPING
Normal : 44.1kHz, Extend: 29.4kHz
Delay: 23.8 seconds
Tape Echo: 5.9 seconds
Normal : 23.8 seconds, 11.9 seconds overdub
Extend: 35.6 seconds, 17.8 seconds overdub
LEVEL, HF DAMP, FEEDBACK, TIME COARSE/TIME, TIME FINE/HEAD GAP, RATIO
MODE SELECT, LOOP LEVEL, LOOP TIME, Footswitch x 2
MODE x 3, EFFECT ON/OFF x1, TEMPO x1
Input: jack. Input impedance 500kOhms or more
Outputs: Mix, Effect/Head 1, Heads 2-4: _jack x 5, output impedance 1kOhms or less
9V DC in (160mA)
AC adaptor (MP9-III)
Dimensions & Weight
5.51 (W) x 7.22 (D) x 2.56 (H) / 140mm (W) x 183.5mm (D) x 65mm (H)
