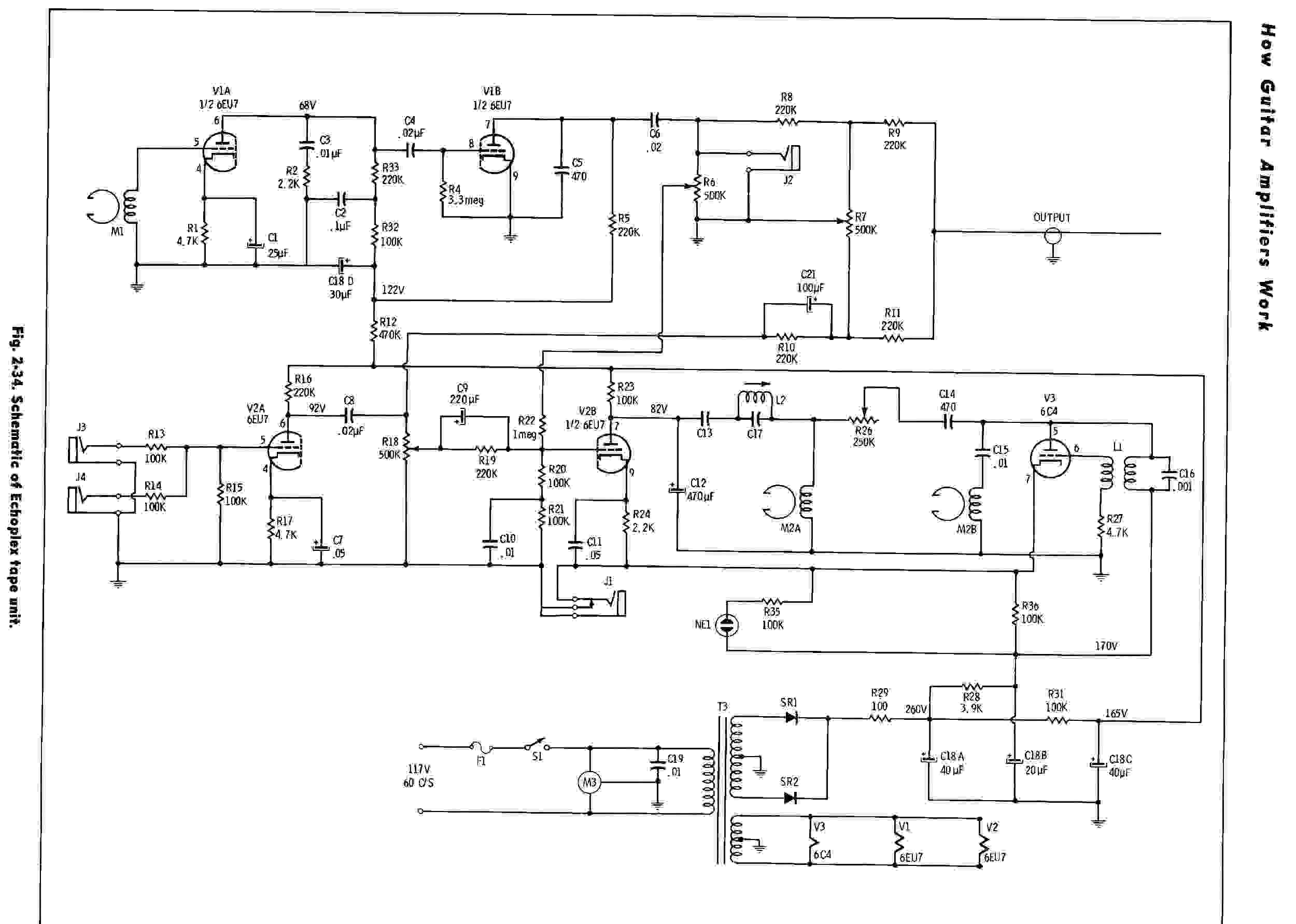

Echoplex Tape Delay Schematic

This is a reprint of it from a text book. Looks like the tube version. Courtesey of David Jeffreys. Also, Check out David's Vintage Tape Delay website.
