The Vortex is an amazing piece of gear, more than a reverb, a small scale looper, and capable of the unique ability to morph from one effect to another. Unfortunately, it never found a market, and never really sold until Lexicon decided to abondon it and it was liquidated by Guitar Center and others for $150.00. Luckily, I found Looper's Delight and the Vortex at just this time and managed to snag one up. For those of you who have picked up up on the used market and are missing the manual, I've scanned it and put it up here on Looper's Delight... ENJOY! - Stew Benedict
The following gif files are BIG (1248x1499), you may have to scroll your screen to read them, but this size lends to fairly good printouts.

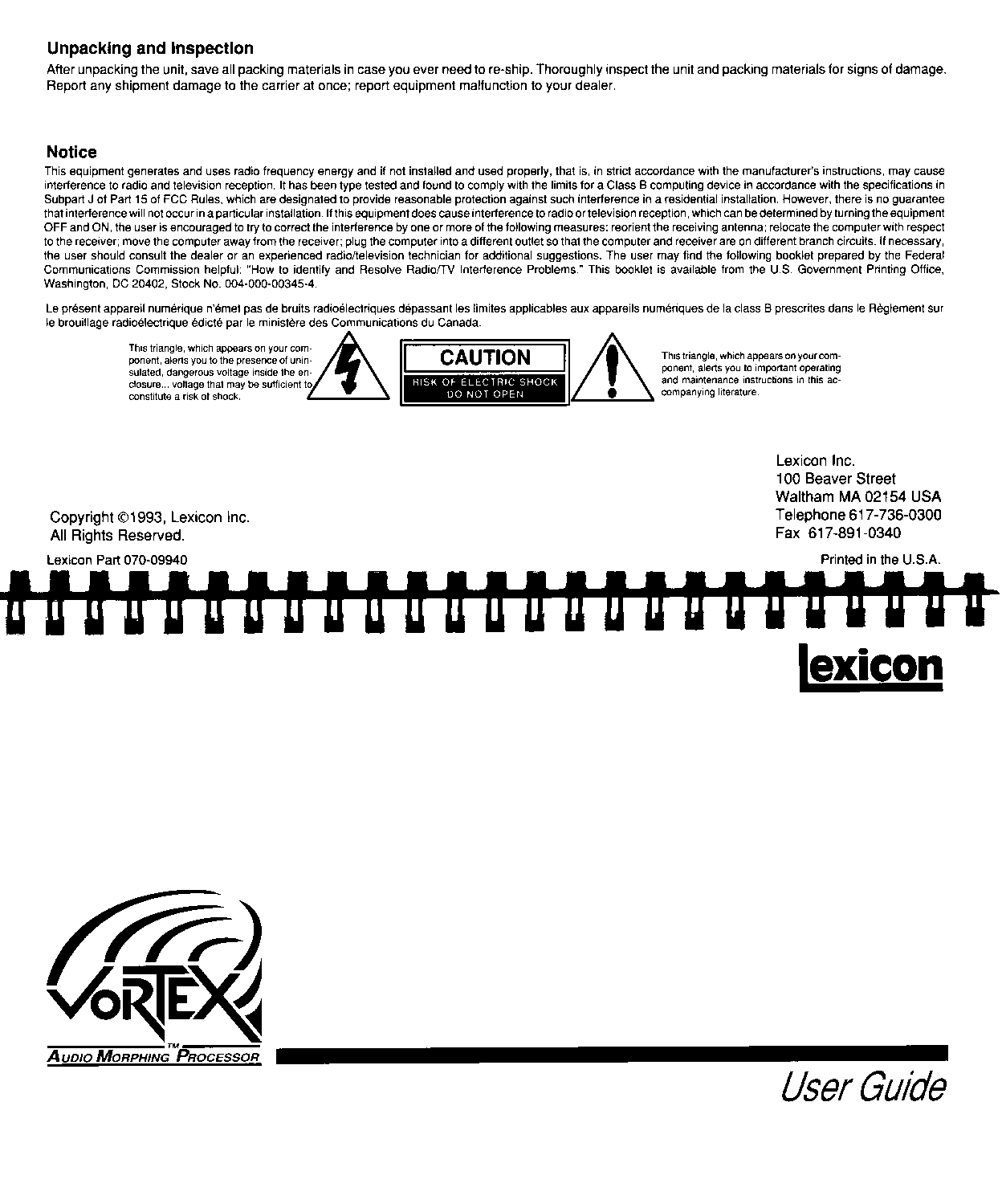

| vortex01.gif |
Copyright, FCC Notice, Lexicon Address, Cover Page |
| vortex02.gif |
Table Of Contents, Getting Started |
| vortex03.gif |
Front Panel Overview, Audio/Mix Levels |
| vortex04.gif |

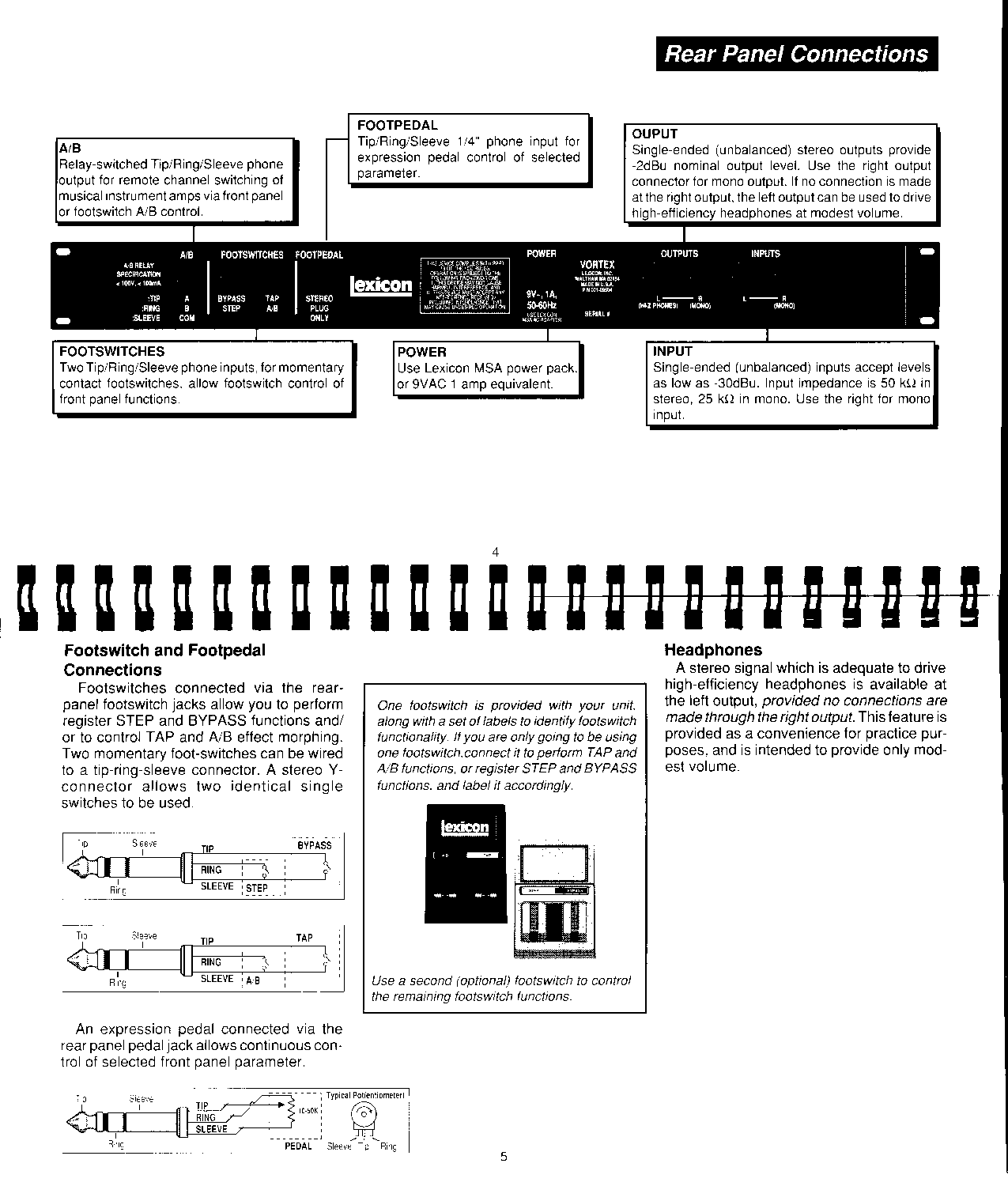

Rear Panel Connections, Footswitches, Headphones |
| vortex05.gif |
Audio Connections, Inline Processing, Effects Return |
| vortex06.gif |
A/B Relay Switch, Basic Operation |
| vortex07.gif |

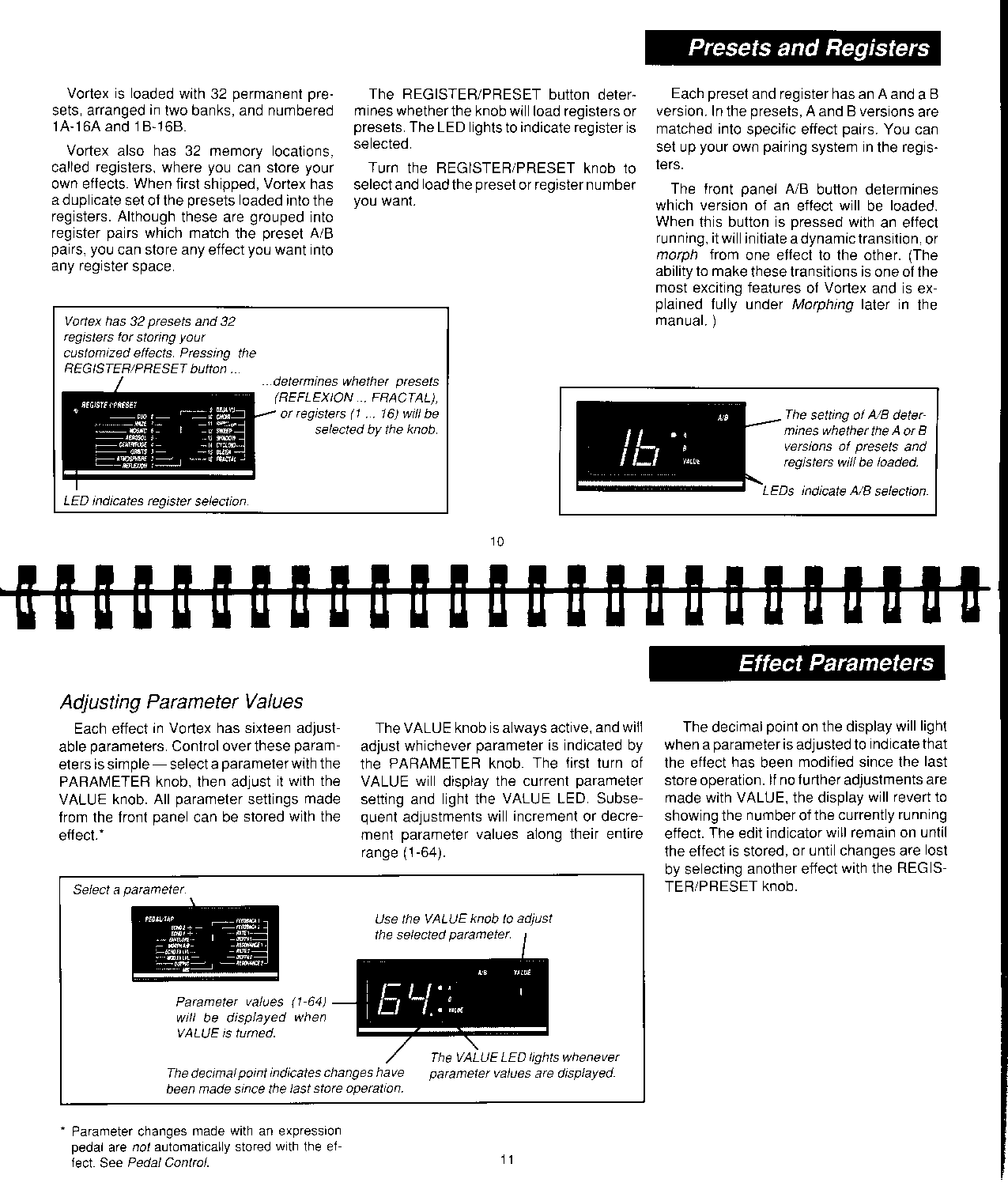

Presets & Registers, Effects Parameters |
| vortex08.gif |
More Effects Parameters, TAP and Echo Rhythms |
| vortex09.gif |

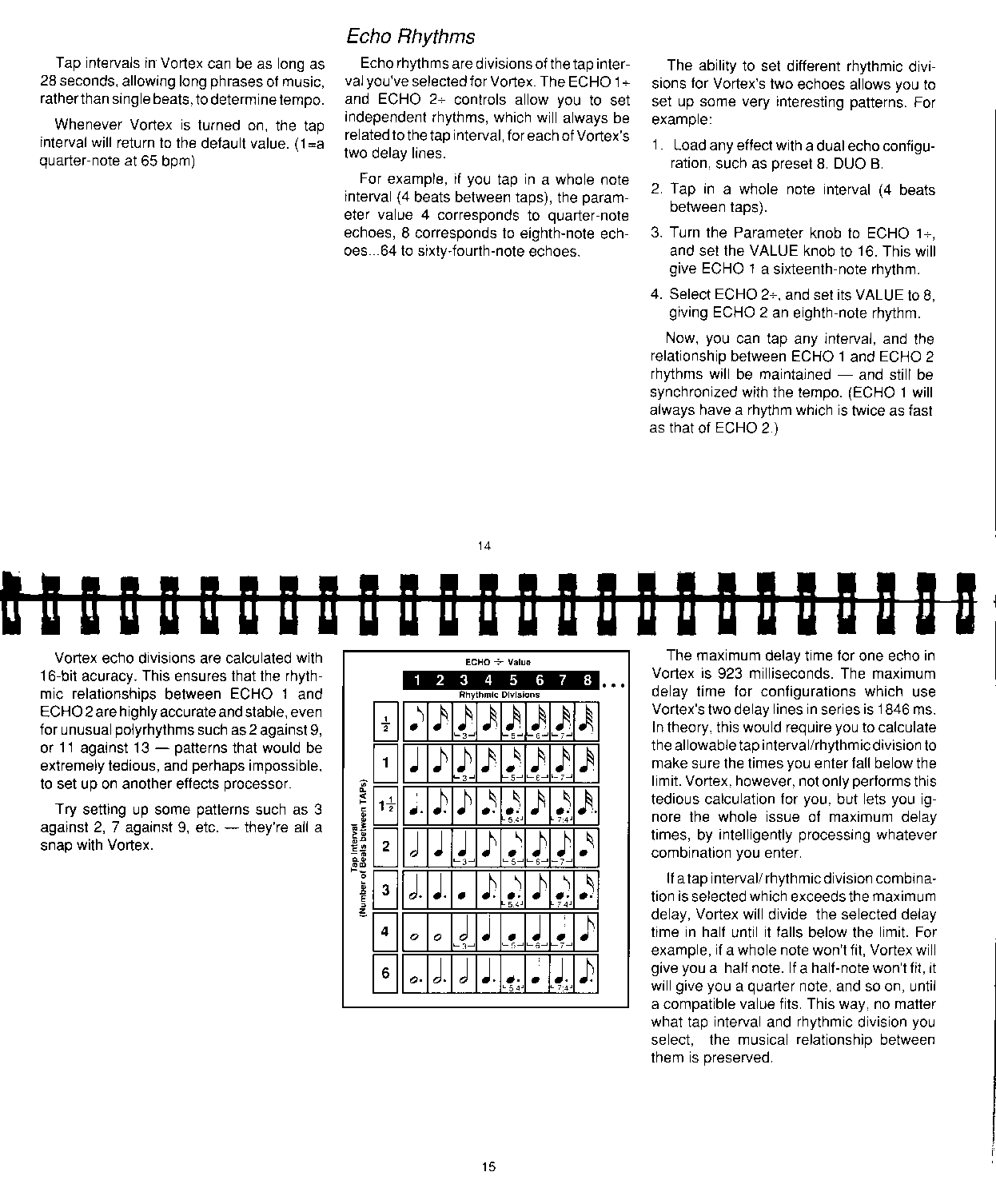

More Echo Rhythms |

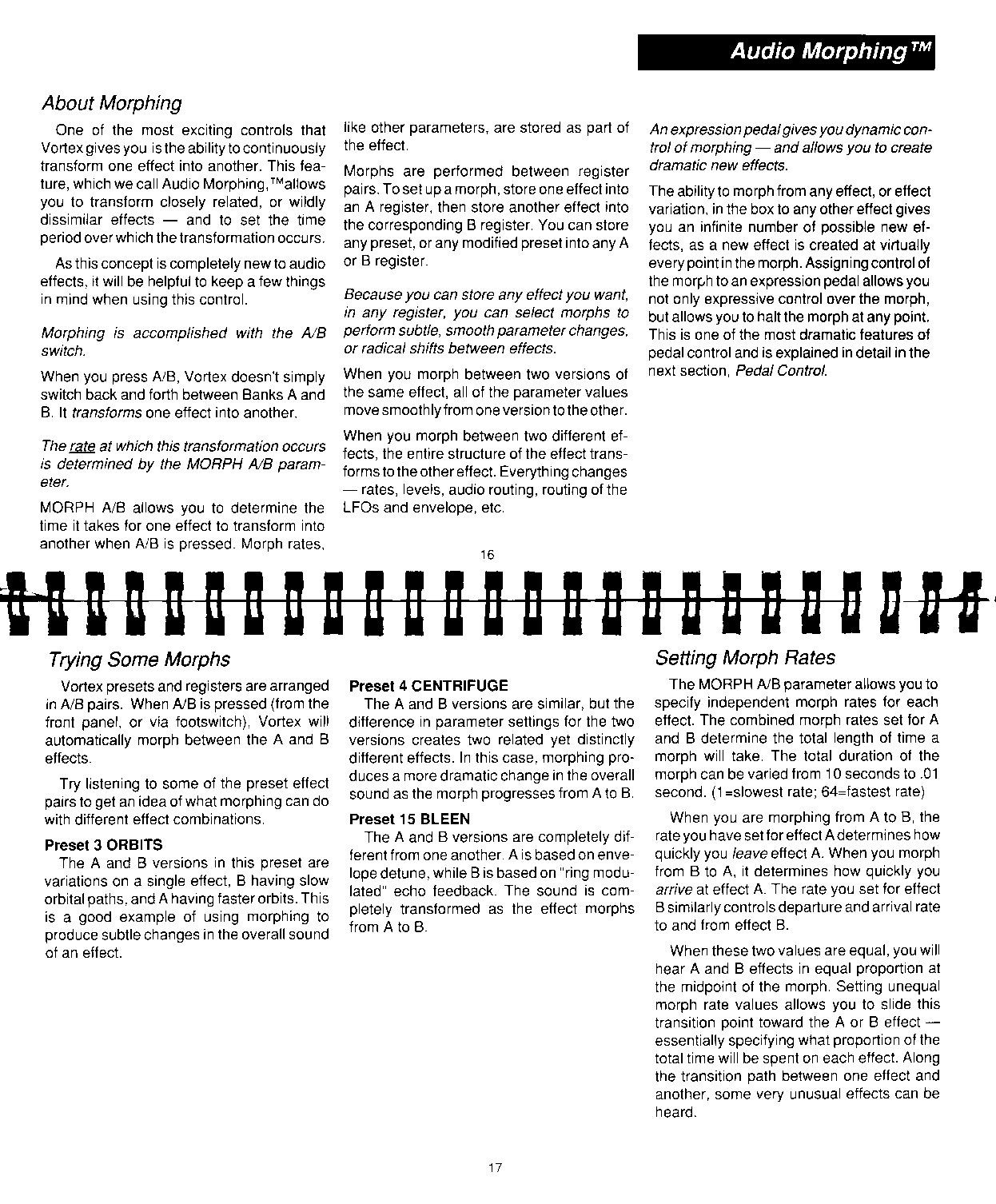

| vortex10.gif |
Audio Morphing (TM) |
| vortex11.gif |
Pedal Control |
| vortex12.gif |
Controlling Morphs with a Pedal, Using Registers |
| vortex13.gif |
More On Registers, Using Footswitches |
| vortex14.gif |
Finding the Preset Used to Create An Effect, Effect Description Overview |

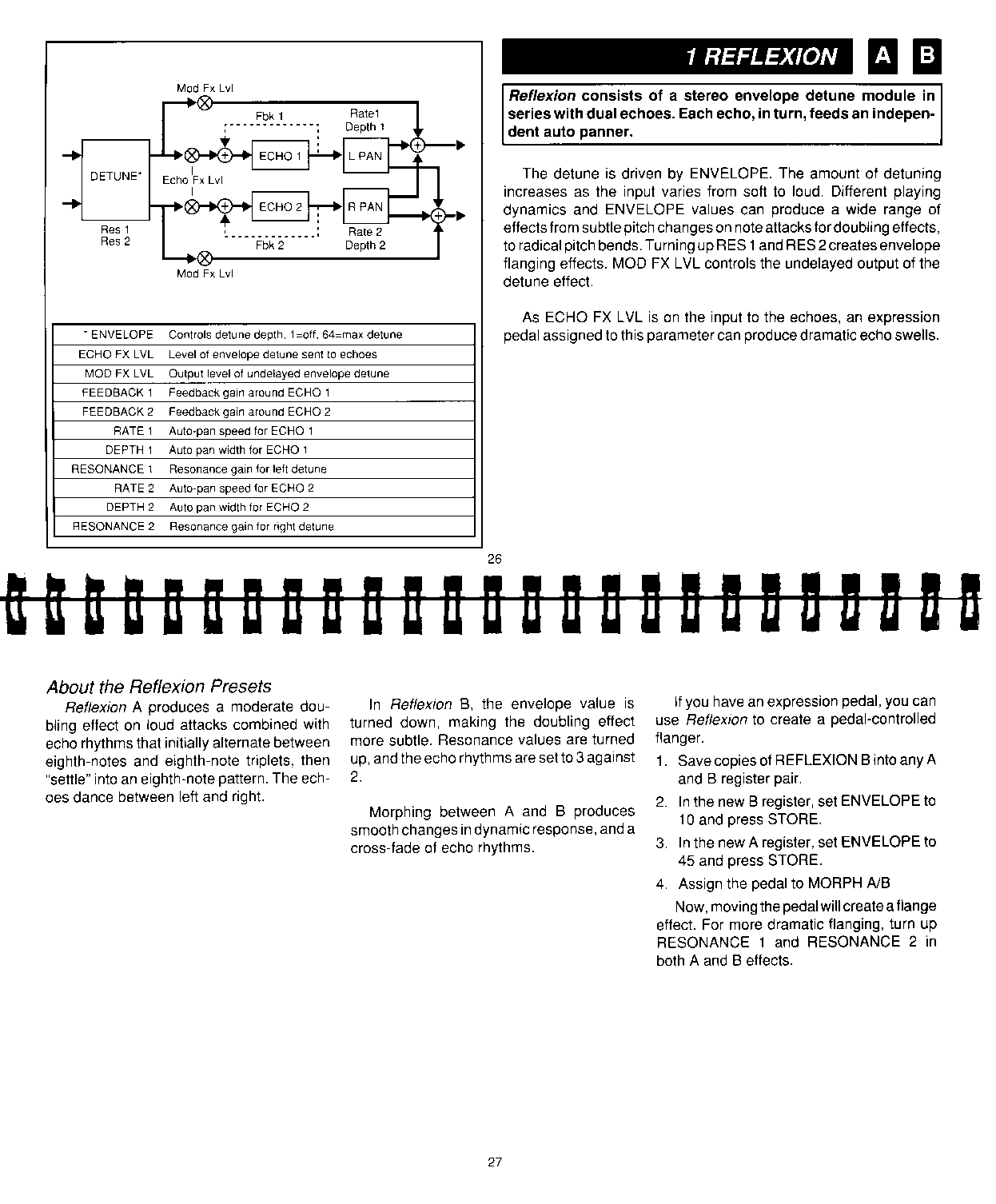

| vortex15.gif |
1 Reflexion A B |
| vortex16.gif |

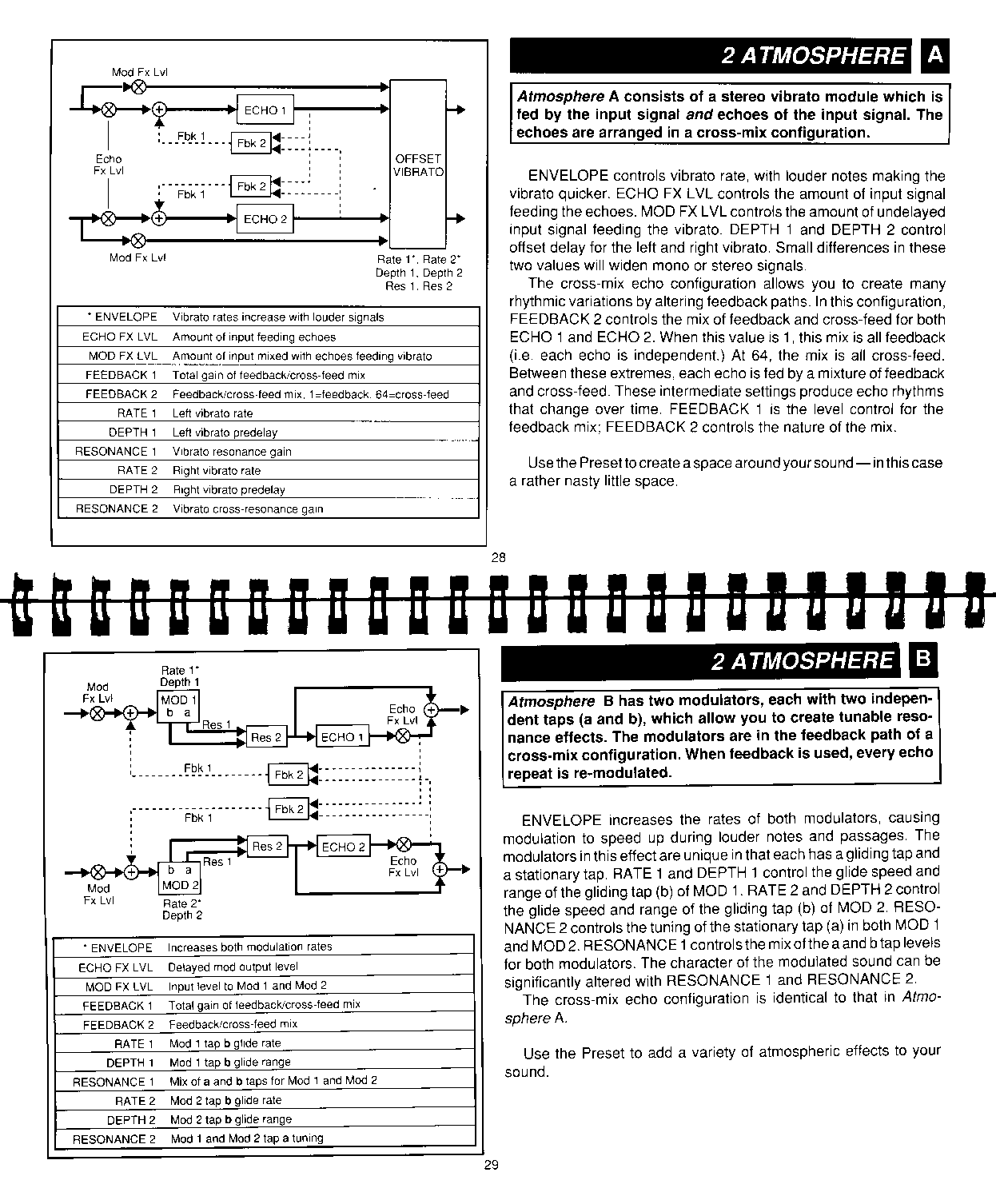

2 Atmosphere A & Atmosphere B |

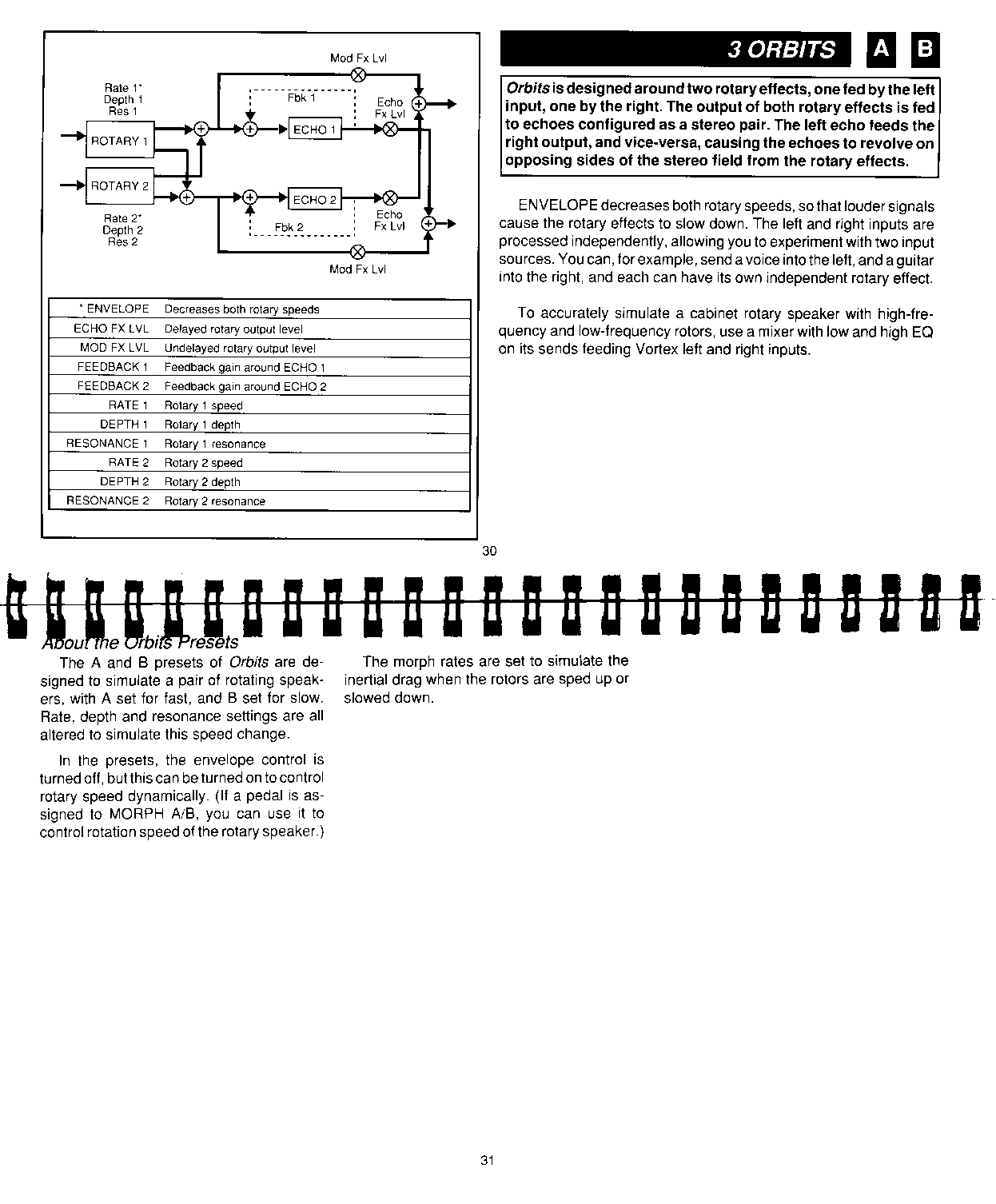

| vortex17.gif |
3 Orbits A B |

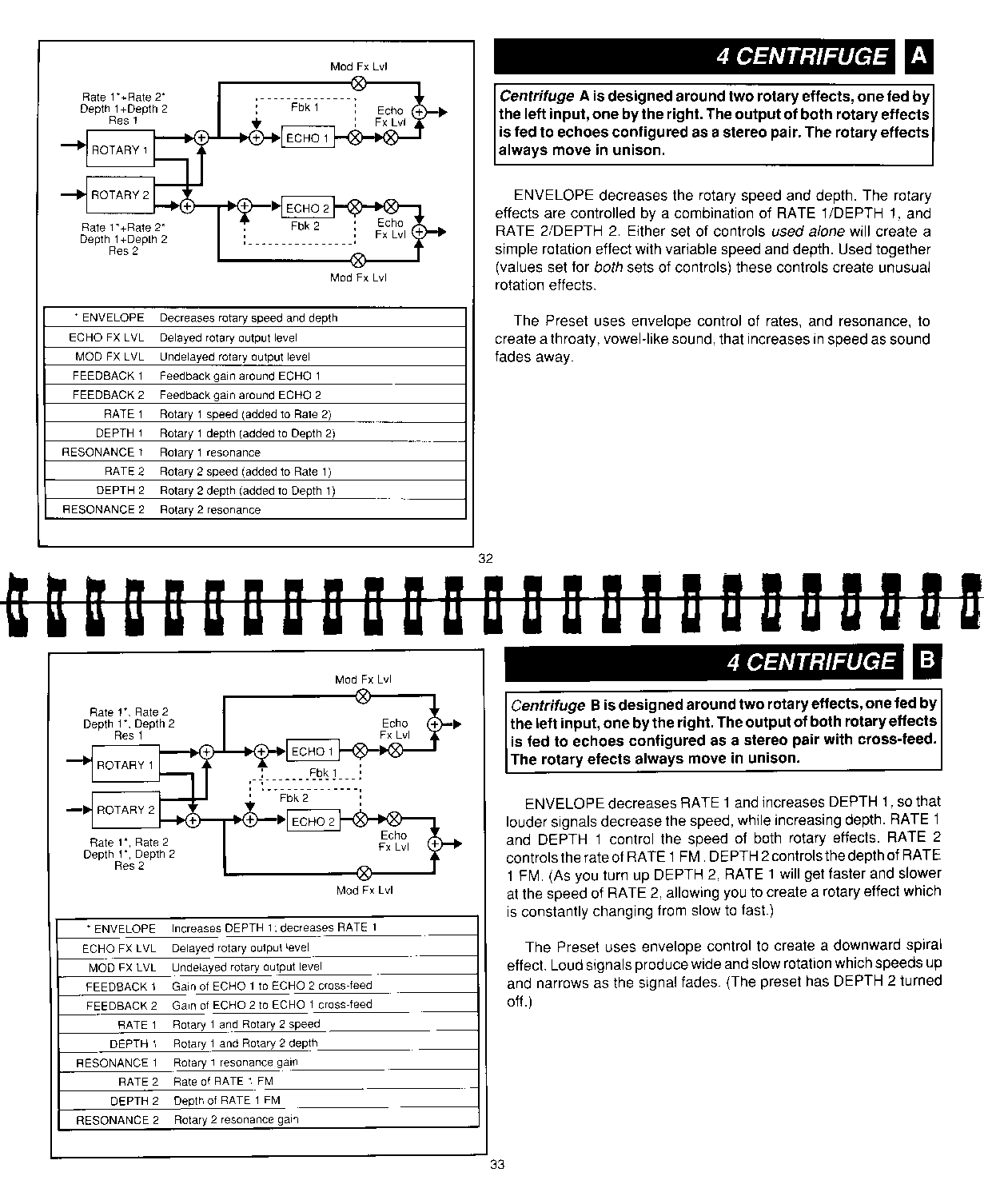

| vortex18.gif |
4 Centrifuge A & Centrifuge B |
| vortex19.gif |

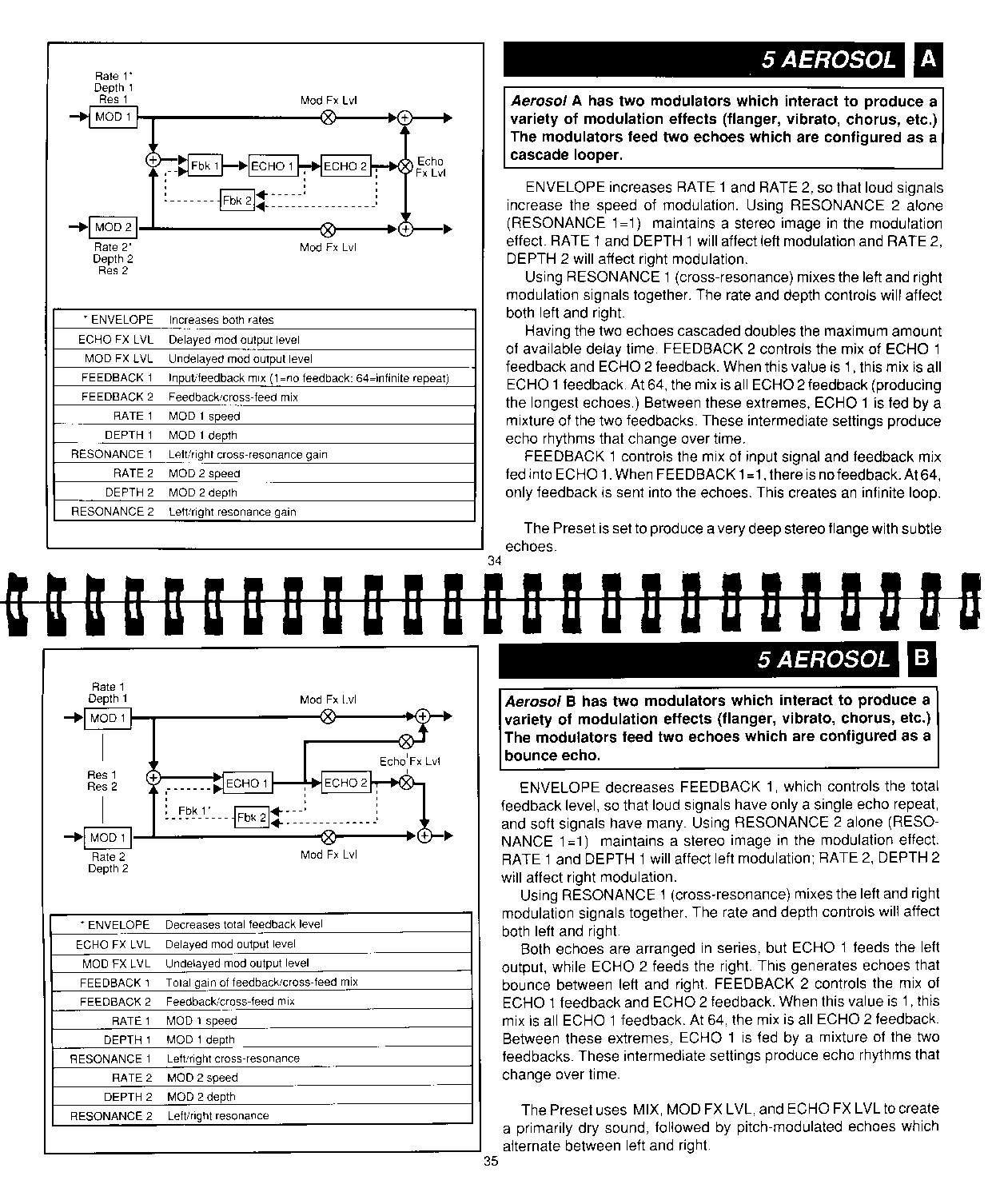

5 Aerosol A & Aerosol B |

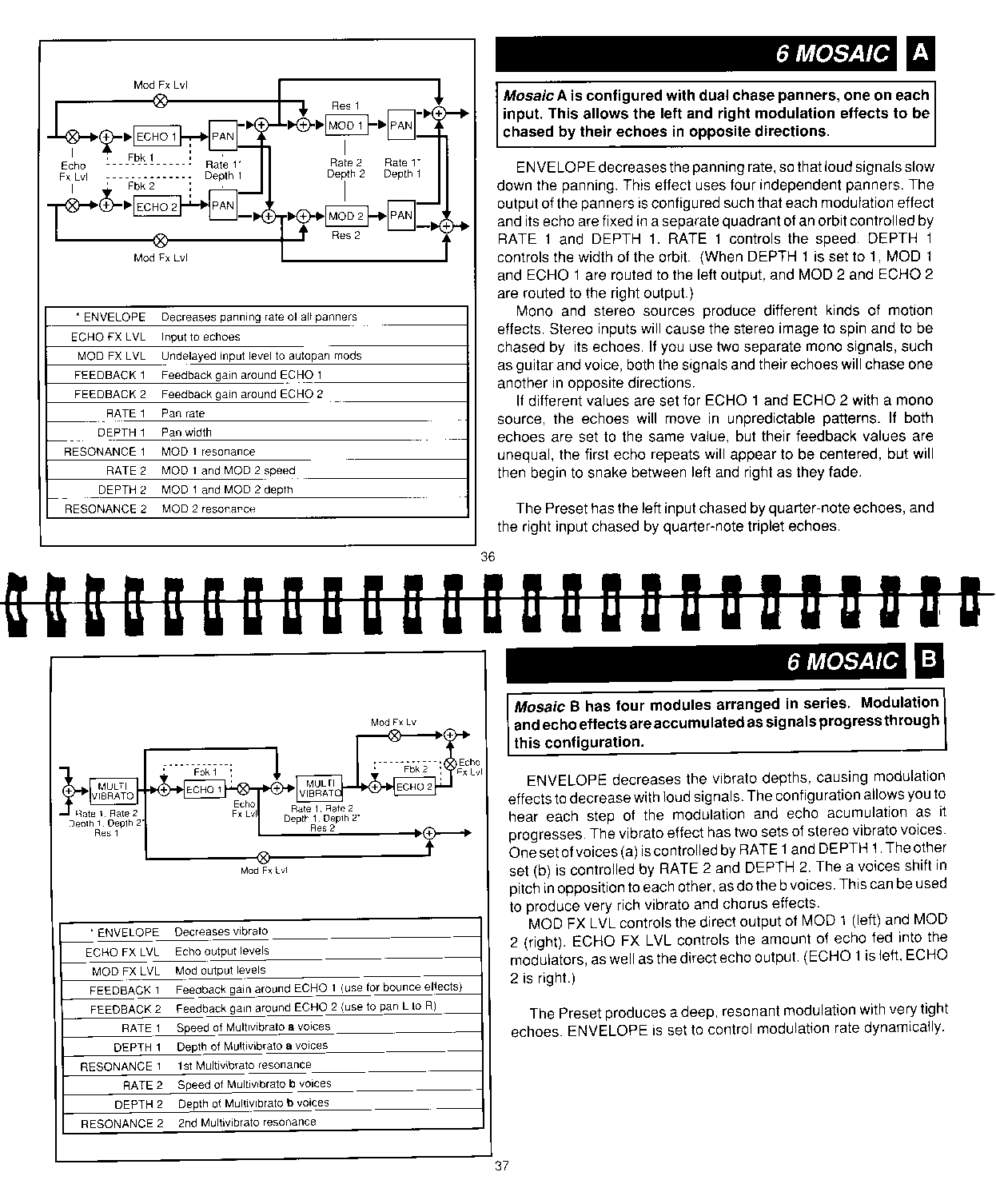

| vortex20.gif |
6 Mosaic A & Mosaic B |
| vortex21.gif |

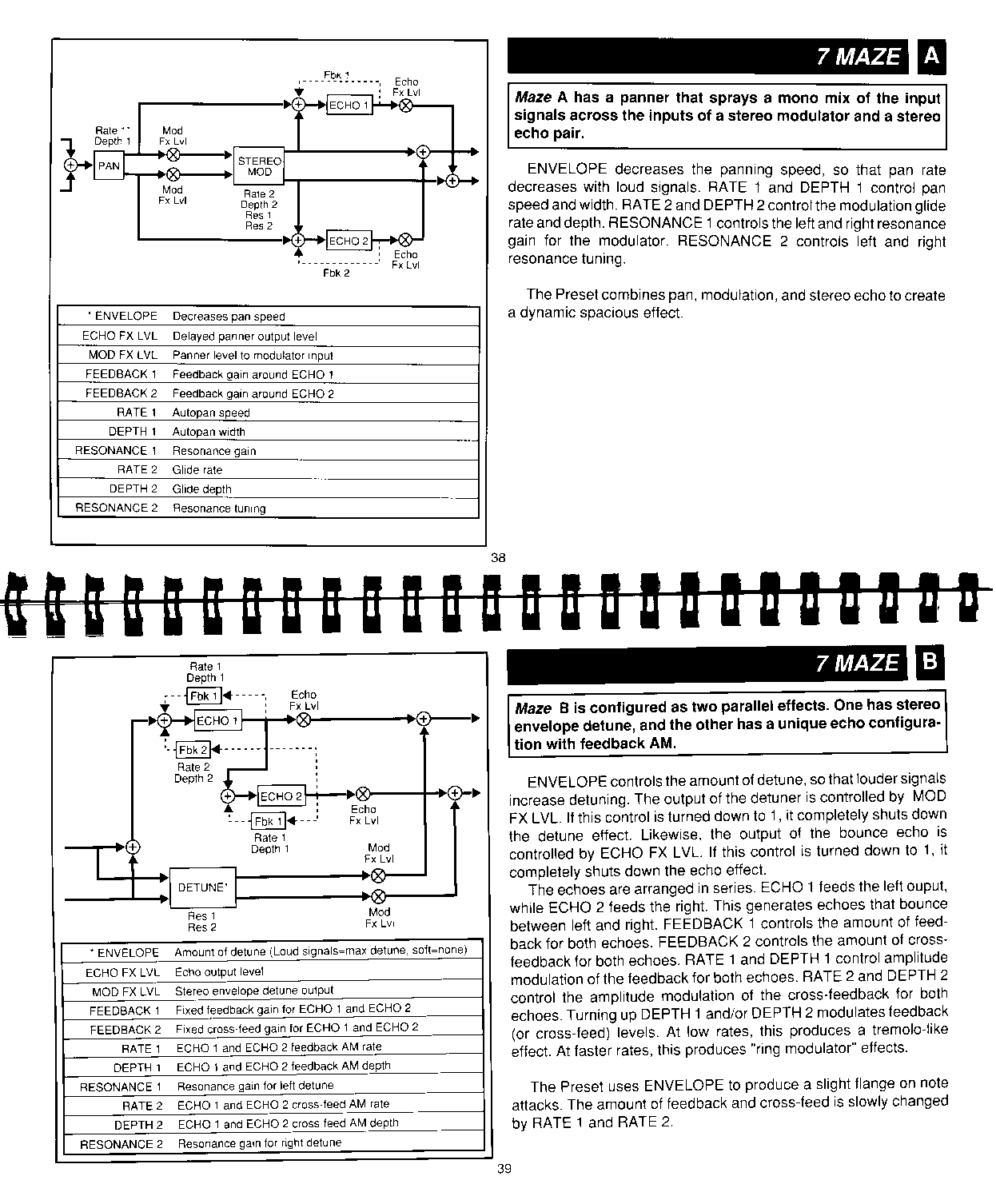

7 Maze A & Maze B |
| vortex22.gif |
8 Duo A & Duo B |
| vortex23.gif |

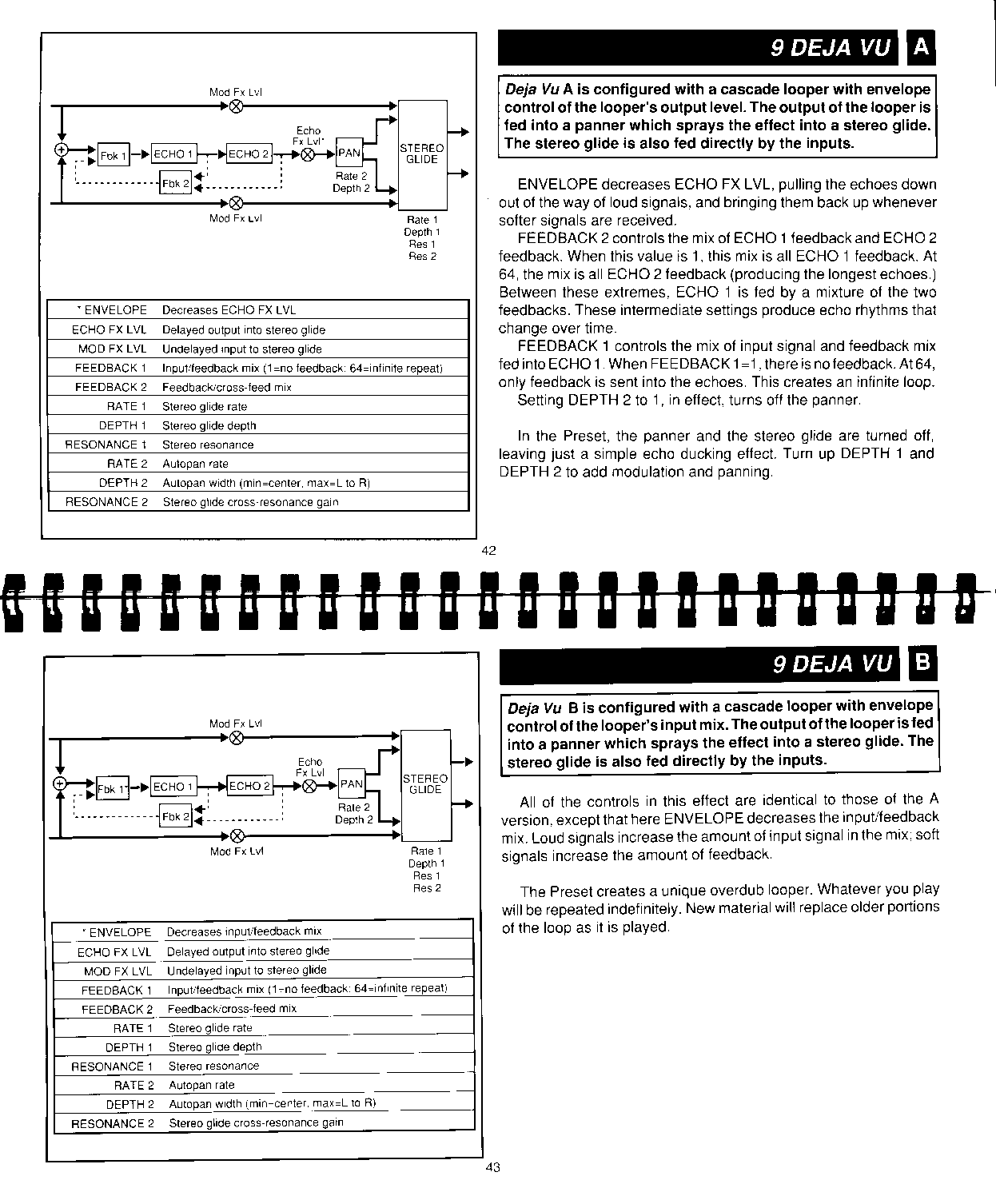

9 Deja Vu A & Deja Vu B |
| vortex24.gif |
10 Choir A & Choir B |

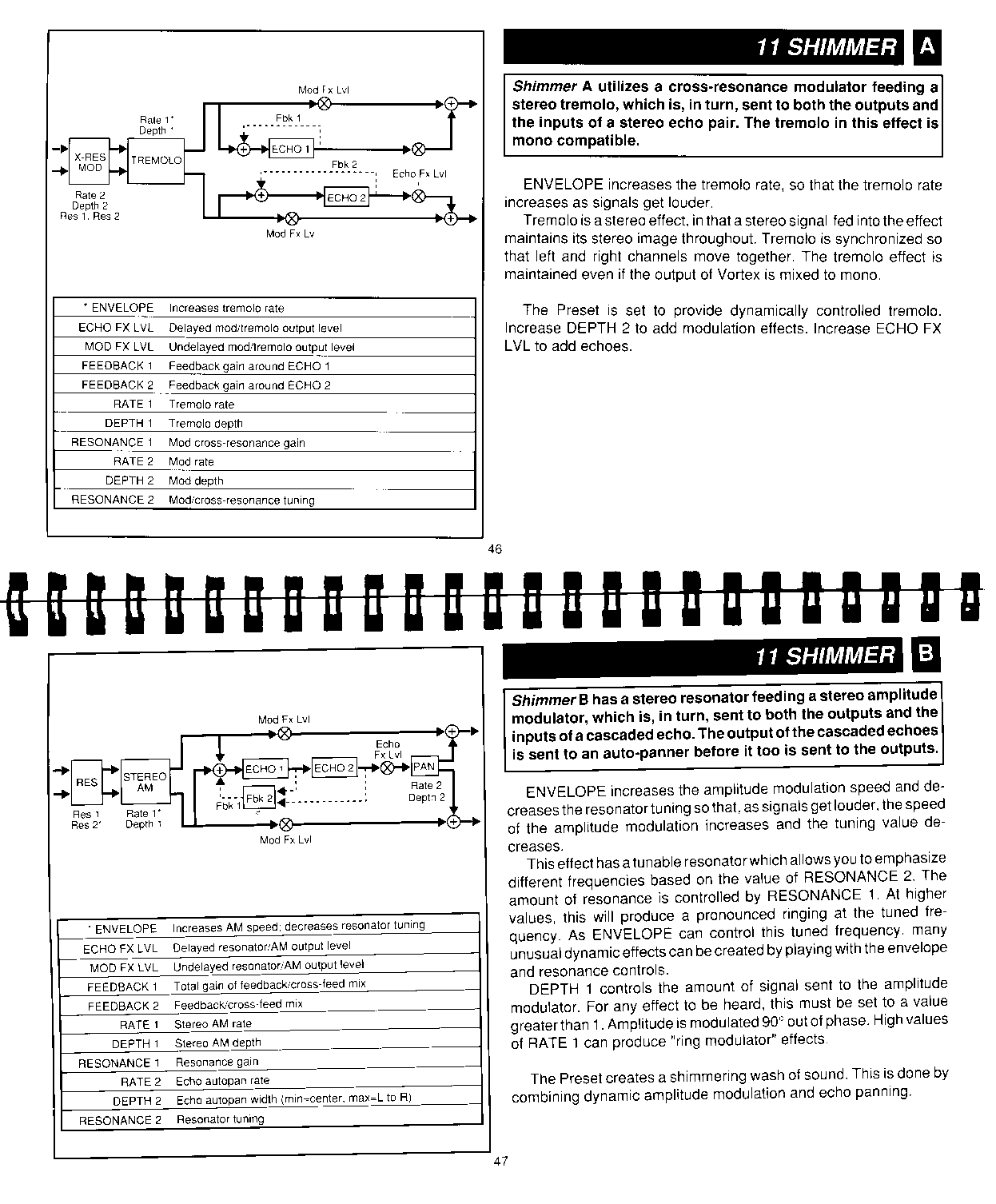

| vortex25.gif |
11 Shimmer a & Shimmer B |
| vortex26.gif |

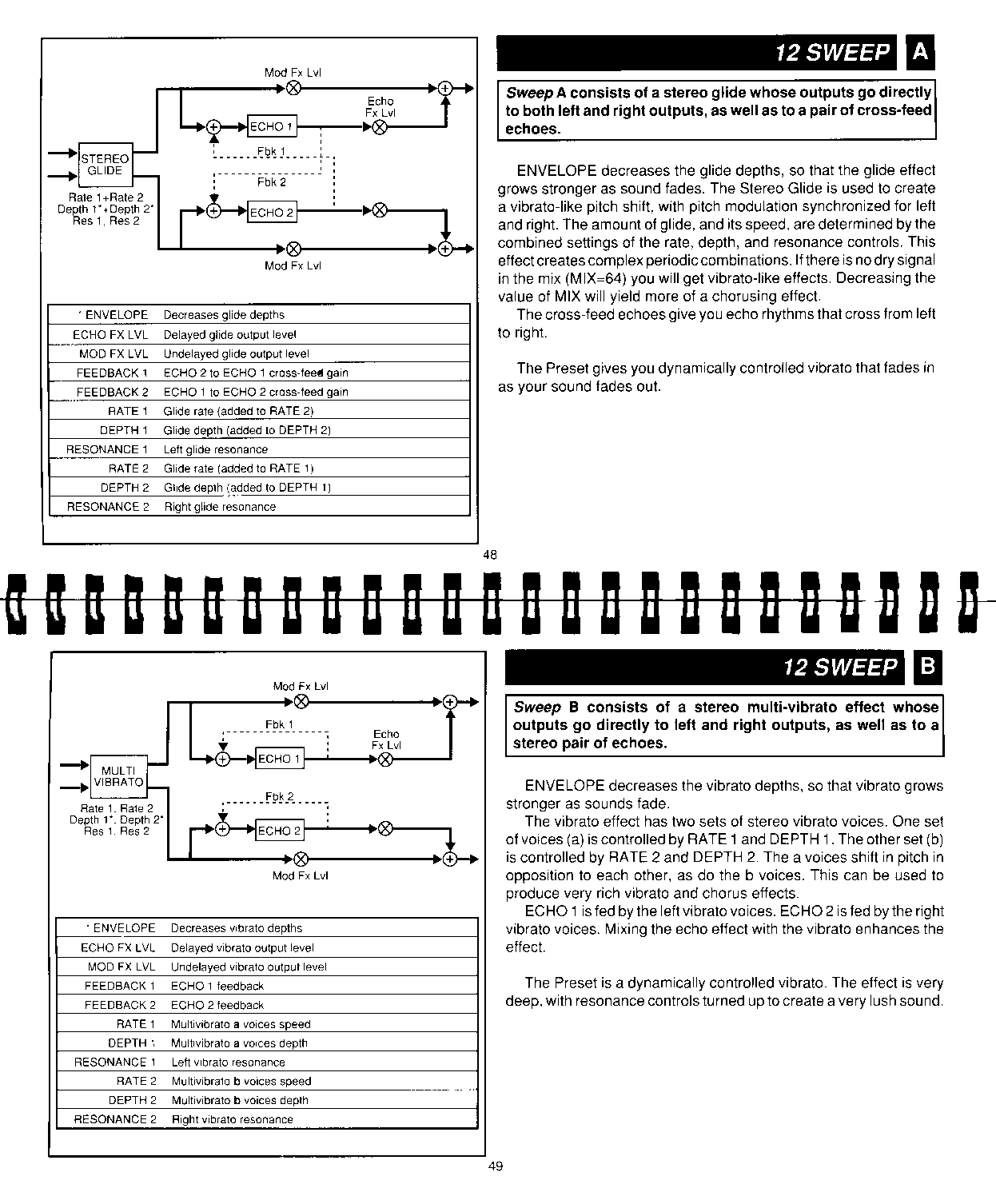

12 Sweep A & Sweep B |
| vortex27.gif |
13 Shadow A & Shadow B |

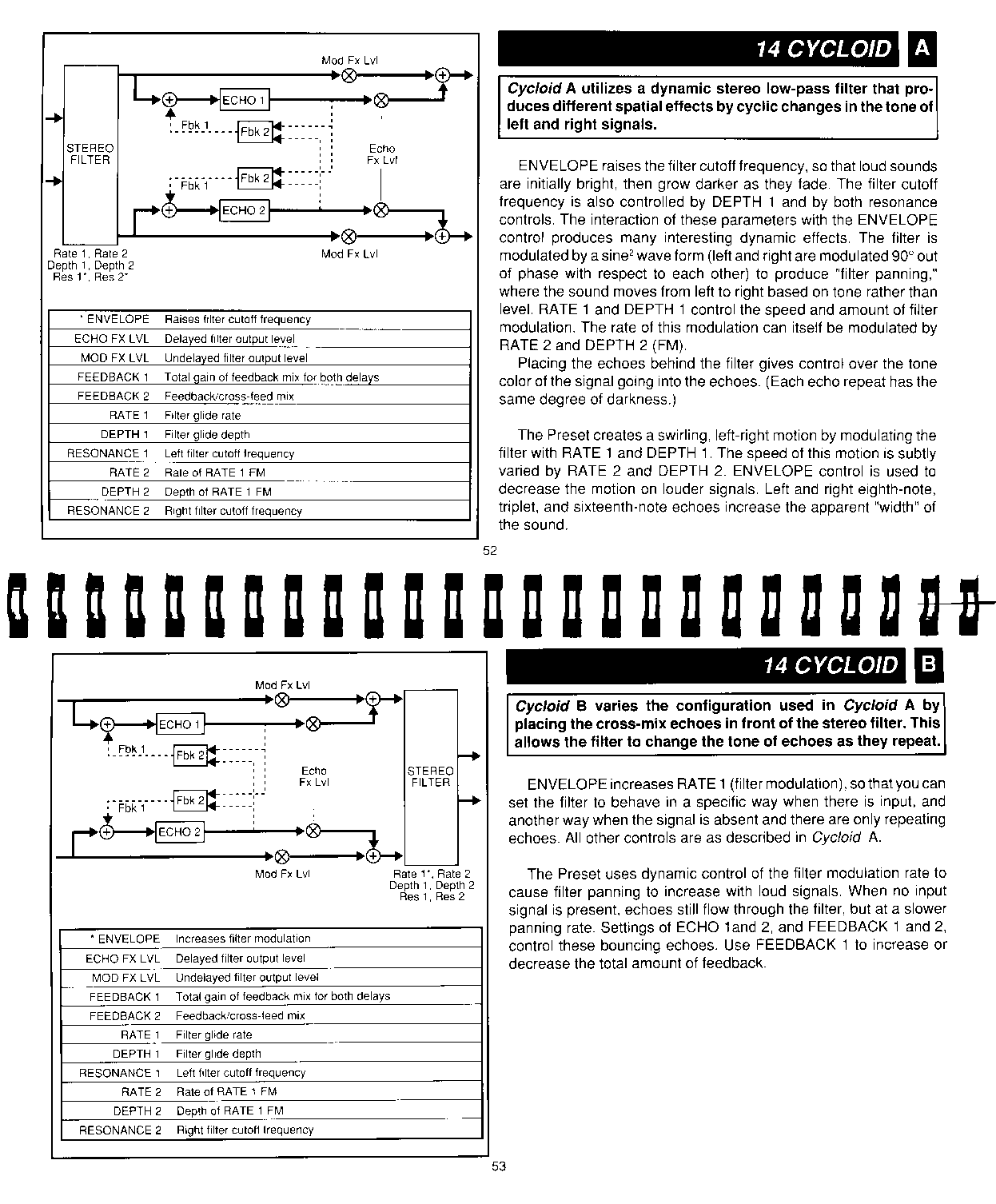

| vortex28.gif |
14 Cycloid A & Cycloid B |
| vortex29.gif |

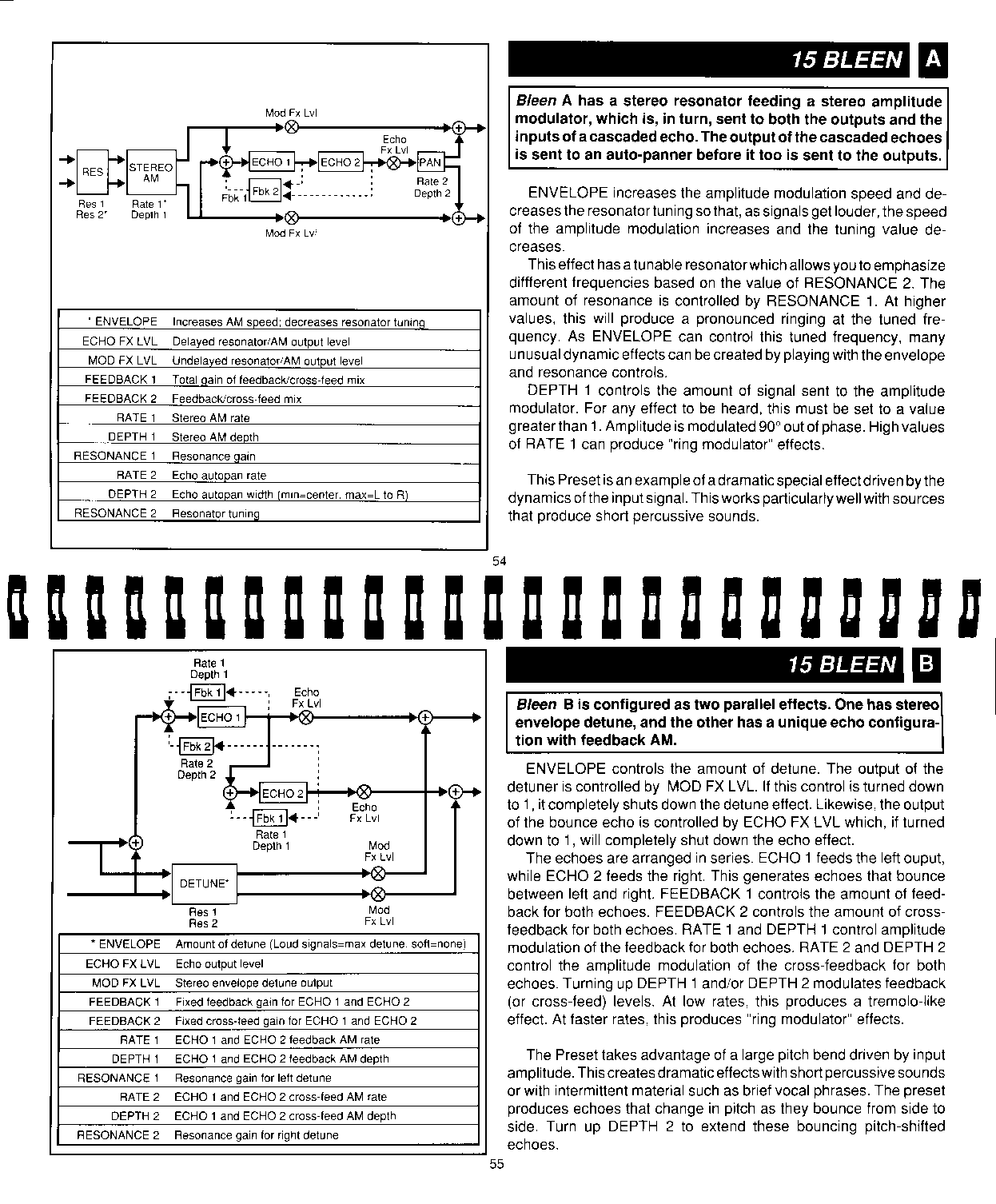

15 Bleen A & Bleen B |
| vortex30.gif |
16 Fractal A B |
| vortex31.gif |

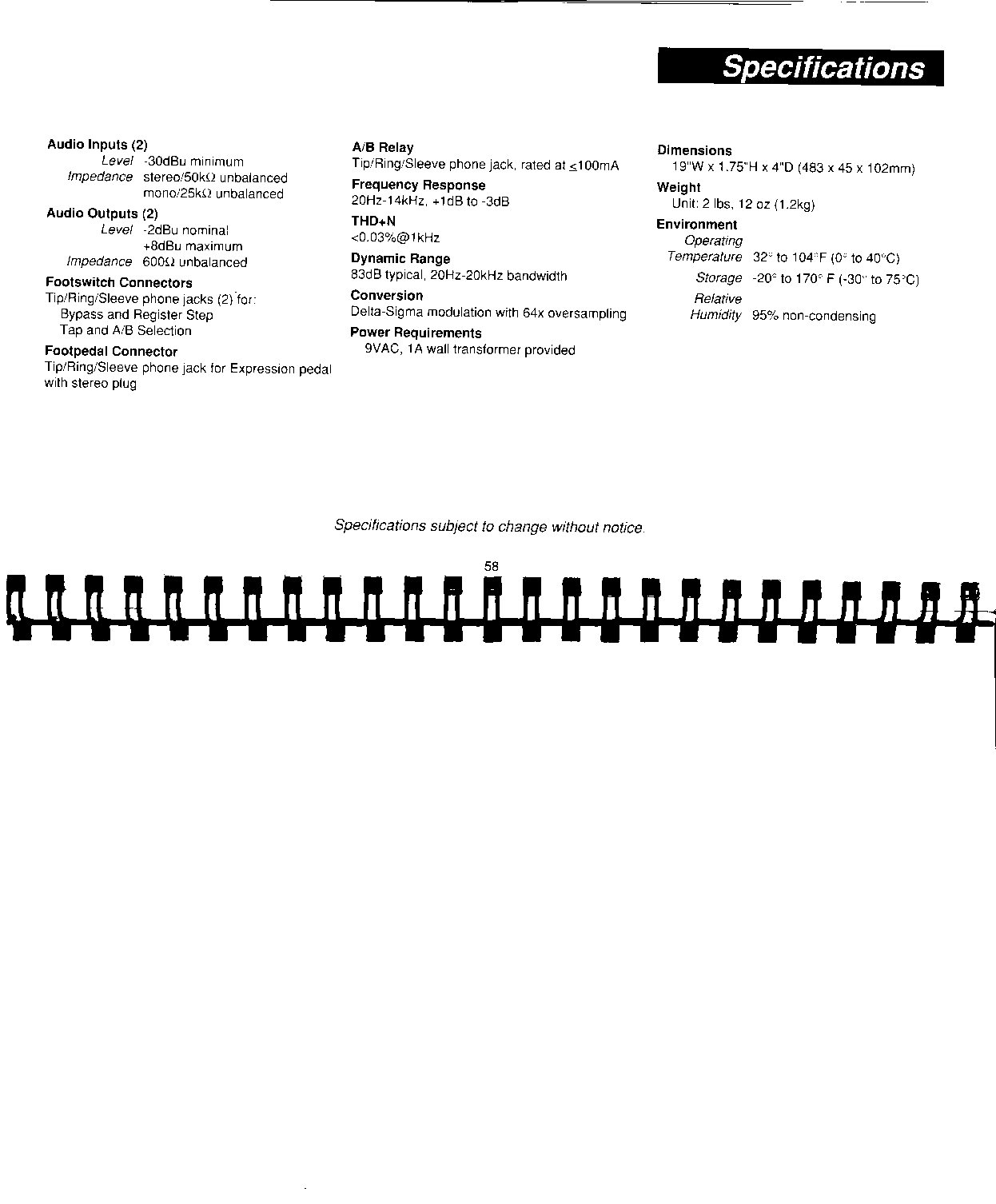

Specifications |
|
|
|
